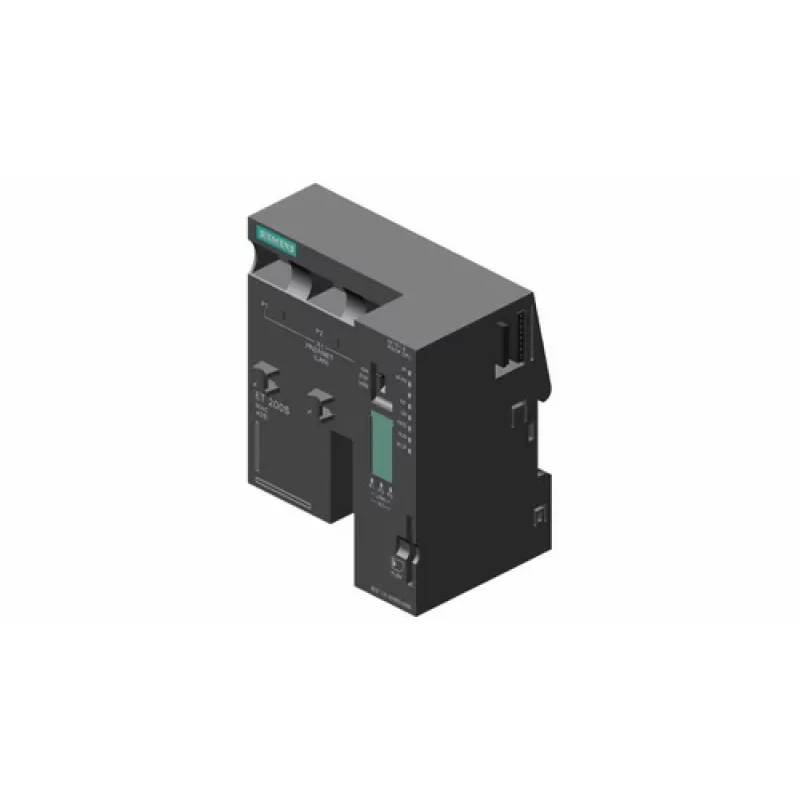

SIEMENS ET200S PLC IM151-8 PN DP 6ES71518AB010AB0
Call Now
WhatsApp
AvailabilityIn Stock
Payment MethodsCash, COD, DirectDebit
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%
SIEMENS ET200S PLC IM151-8 PN DP 6ES71518AB010AB0 Details
Product Details:
6ES7151-8AB01-0AB0
SIMATIC DP, IM151-8 PN/DP CPU for ET200S, 192 KB work memory, int. PROFINET interface (with three RJ45 ports) as IO Controller,without battery MMC required
The ET 200S distributed I/O system is a finely-graduated modular, highly flexible DP slave with IP 20 protection.
You can connect virtually any number of I/O modules in virtually any combination right next to the interface module that transfers the data to the DP master. This means you can adjust the configuration to suit local requirements.
Depending on the interface module, each ET 200S can consist of up to 63 modules for example, power modules, I/O modules, and motor starters.
The ET 200S distributed I/O system consists primarily of various passive terminal modules to which you connect the electronic modules and motor starters. The ET 200S distributed I/O system is connected to the PROFIBUS-DP bus system by means of PROFIBUS-DP connectors on the interface module. Each ET 200S distributed I/O system is a DP slave on the PROFIBUS-DP bus system.
| Manufacturer Series | S7 ET 200 CPU |
| Mounting Type | DIN Rail |
| Communication Port | PN/DP |
| Brand | SIEMENS,SINAMICS |
| Usage/Application | PLC |
| Degree of Protection | IP20 |
| Transmission Speed | 100 Mbit/s; full duplex |
| Number of modules per system | 63 |
| Work memory | 192 kbyte |
| Supply voltage | 24V DC |
SIMATIC DP, IM151-8 PN/DP CPU for ET200S, 192 KB work memory, int. PROFINET interface (with three RJ45 ports) as IO Controller,without battery MMC required
The ET 200S distributed I/O system is a finely-graduated modular, highly flexible DP slave with IP 20 protection.
You can connect virtually any number of I/O modules in virtually any combination right next to the interface module that transfers the data to the DP master. This means you can adjust the configuration to suit local requirements.
Depending on the interface module, each ET 200S can consist of up to 63 modules for example, power modules, I/O modules, and motor starters.
The ET 200S distributed I/O system consists primarily of various passive terminal modules to which you connect the electronic modules and motor starters. The ET 200S distributed I/O system is connected to the PROFIBUS-DP bus system by means of PROFIBUS-DP connectors on the interface module. Each ET 200S distributed I/O system is a DP slave on the PROFIBUS-DP bus system.
Additional Information:
- Item Code: 6ES7151-8AB01-0AB0
- Delivery Time: SAME DAY
- Packaging Details: BOX PACK
