SIEMENS ET200S PLC IM151-7 6ES71517AA210AB0 Details
Product Details:

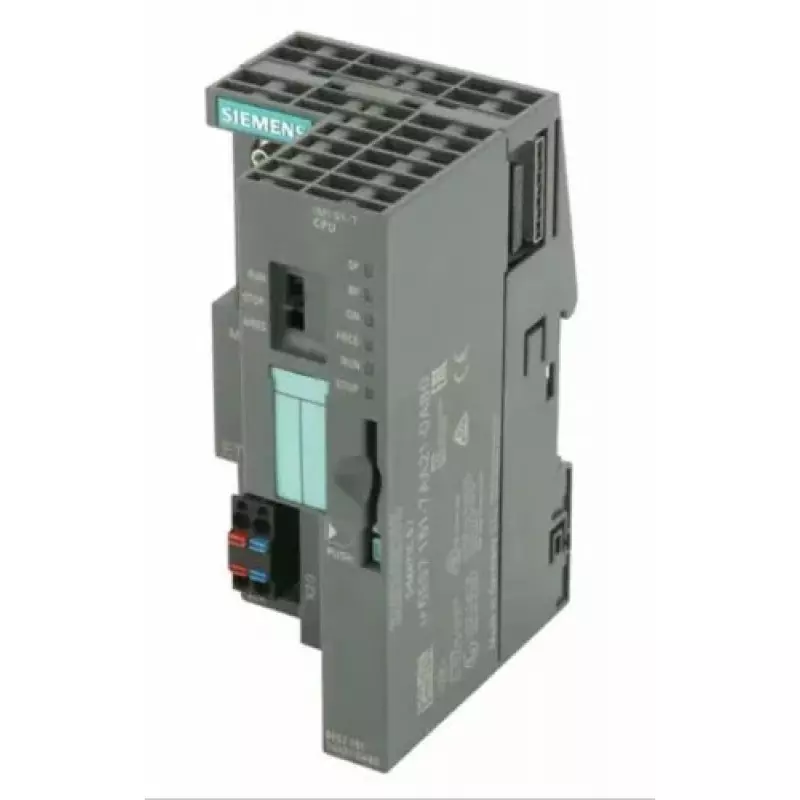

SIMATIC DP, IM151-7 CPU for ET200S, 128 KB work memory with integrated PROFIBUS DP interface (9-pole D-sub socket) as DP Slave, without battery SIMATIC MMC required
The ET 200S distributed I/O system is a finely-graduated modular, highly flexible DP slave with IP 20 protection.
You can connect virtually any number of I/O modules in virtually any combination right next to the interface module that transfers the data to the DP master. This means you can adjust the configuration to suit local requirements.
Depending on the interface module, each ET 200S can consist of up to 63 modules for example, power modules, I/O modules, and motor starters.
The ET 200S distributed I/O system consists primarily of various passive terminal modules to which you connect the electronic modules and motor starters. The ET 200S distributed I/O system is connected to the PROFIBUS-DP bus system by means of PROFIBUS-DP connectors on the interface module. Each ET 200S distributed I/O system is a DP slave on the PROFIBUS-DP bus system.
| Mounting Type | DIN Rail |
| Manufacturer Series | S7 ET 200 CPU |
| Degree of Protection | IP20 |
| Number of modules per system | 63 |
| Supply voltage | 24V DC |
| Work memory | 128 kbyte |
| Interface | MPI/PROFIBUS DP |
| 6ES7151-7AA21-0AB0 |
SIMATIC DP, IM151-7 CPU for ET200S, 128 KB work memory with integrated PROFIBUS DP interface (9-pole D-sub socket) as DP Slave, without battery SIMATIC MMC required
The ET 200S distributed I/O system is a finely-graduated modular, highly flexible DP slave with IP 20 protection.
You can connect virtually any number of I/O modules in virtually any combination right next to the interface module that transfers the data to the DP master. This means you can adjust the configuration to suit local requirements.
Depending on the interface module, each ET 200S can consist of up to 63 modules for example, power modules, I/O modules, and motor starters.
The ET 200S distributed I/O system consists primarily of various passive terminal modules to which you connect the electronic modules and motor starters. The ET 200S distributed I/O system is connected to the PROFIBUS-DP bus system by means of PROFIBUS-DP connectors on the interface module. Each ET 200S distributed I/O system is a DP slave on the PROFIBUS-DP bus system.
Additional Information:
- Item Code: 6ES7151-7AA21-0AB0
- Delivery Time: SAME DAY
- Packaging Details: BOX PACK
