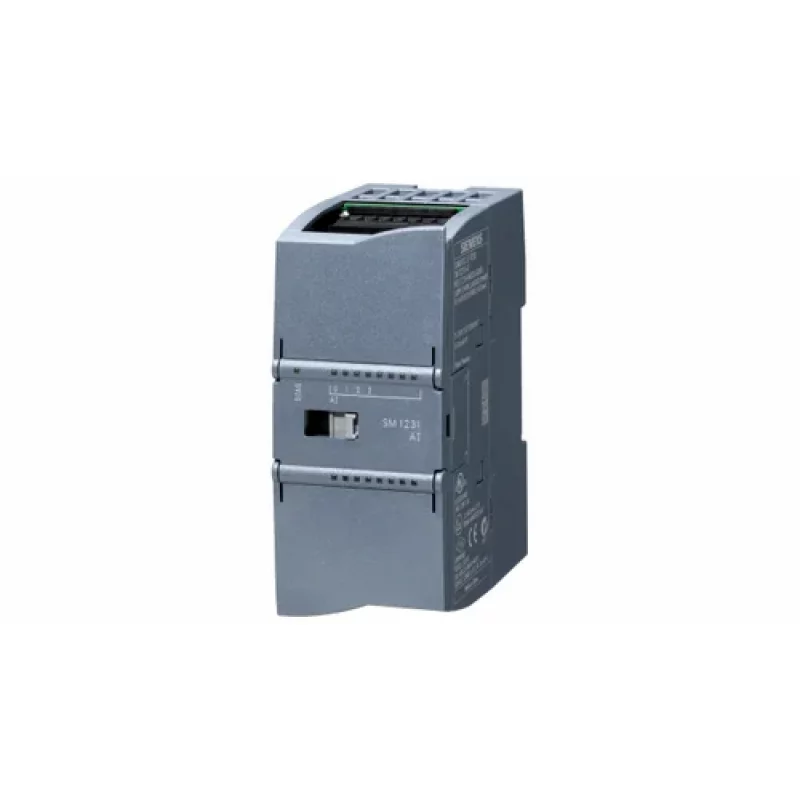

SIMATIC S7-1200 4AI TC MODULE 6ES7231-5QD32-0XB0

Thermocouple Input Performance with SIMATIC S7-1200 4AI TC Module

The Siemens 6ES7231-5QD32-0XB0 Thermocouple Input Module brings precise temperature acquisition to the S7-1200 PLC platform. Built to handle direct TC sensor inputs, this 4-channel unit ensures reliable thermal data collection for process-critical environments.

These products are widely used in commercial and industrial applications involving thermal monitoring, HVAC, furnaces, and temperature-based automation systems.

Technical Breakdown:

Performance Benefits:

• Direct support for standard thermocouples with integrated cold junction
• Accurate signal conversion ideal for furnace and oven automation
• Compact design tailored for SIMATIC S7-1200 rail-mount systems
• Reduced cabling and no need for external signal conditioners
• Temperature range detection up to 1800°C (depends on sensor type)
• Fully integrated into TIA Portal for diagnostics and configuration

Where It Fits Best:

Ideal for operations that depend on multiple point temperature control such as food processing, pharmaceutical plants, ceramic kilns, and metallurgy. This module allows automation engineers to directly plug in thermocouples without using additional analog signal modules or converters.

Its seamless configuration and advanced diagnostics enable faster deployment with less system overhead.

Module Highlights & Supply Terms:

• Delivery Timeline: Dispatch in 2 to 4 working days
• Operating Voltage: Supplied via system bus
• Housing Type: Plastic DIN enclosure
• Service Support: Available for installation and testing
